HARDWARE
ARDUINO

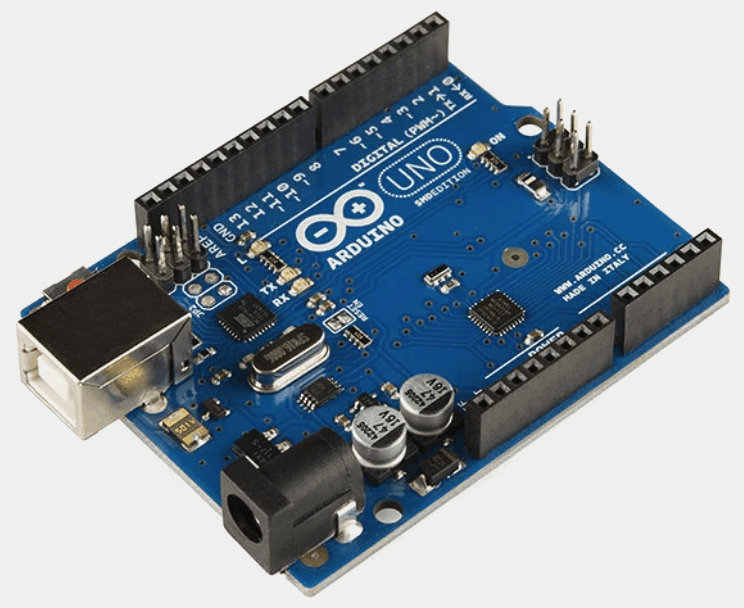

We will be using the Arduino UNO for a sample microcontroller.
- INPUT - using ZIM as input to control the physical world
- OUTPUT - using the physical world to control ZIM
INPUT

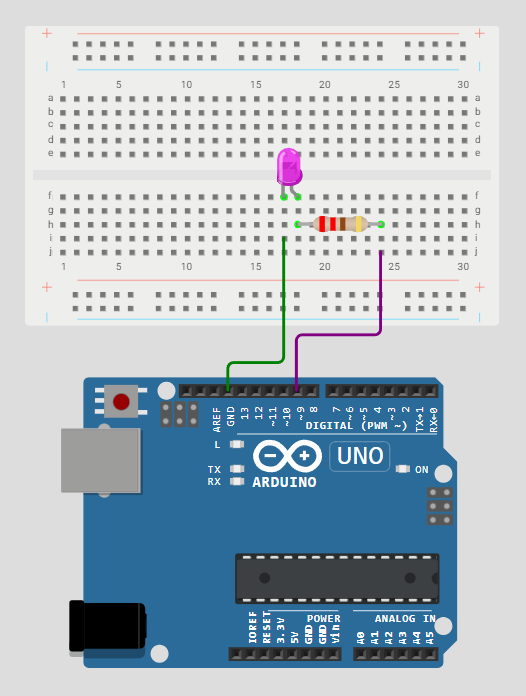

Press a toggle in ZIM to turn off and on the light on the Arduino. Here is an INPUT ZIP file to help set up your Hardware Zapp including:- CIRCUIT DIAGRAM with Arduino UNO, Breadboard, Resistor (220Ω), LED
- ZIM CODE - using write() method of Hardware() class
- ARDUINO CODE - setup in Arduino IDE
OTHER INPUTS
- Use a hitTest to trigger Arduino buzzer
- Use a Slider to change the speed of a blinking light
- Use a TextInput to write to a remote LCD Screen
OUTPUT

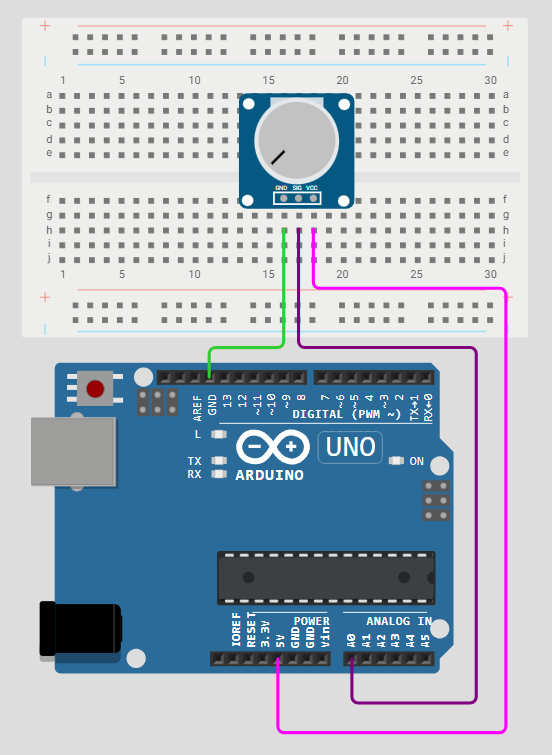

Turn a knob on the Arduino to change the speed of the boat (and rotate the arm of the sun). Here is an OUTPUT ZIP file to help set up your Hardware Zapp including:- CIRCUIT DIAGRAM with Arduino UNO, Breadboard, Potentiometer
- ZIM CODE - using data event of Hardware() class
- ARDUINO CODE - setup in Arduino IDE
OTHER OUTPUTS
- Use an Ultrasonic (proximity) sensor to change ZIM Synth
- Use two buttons on a breadboard to page through ZIM Carousel3D
- Use a joystick to control a ZIM MotionController (manual type)
